Gate stuck or won't move?
Fast Service. Within 1 Hour.
Perimeter open means the property is wide open and you can't lock up at end of day. We respond same-day, every brand — LiftMaster, FAAC, HySecurity, DoorKing, Nice, DEA, Linear, Came. Parts on the truck.
Call now — we dispatch from our Richmond yard the moment you hang up. Gate operators, photo eyes, edge sensors, loop detectors — we'll get the gate moving and the perimeter secured.
Pricing at a glance — Richmond sliding gate service
The single biggest legal exposure on a Richmond commercial property is a gate that isn't UL 325-2018 compliant. The audit fee tells you exactly where you stand.
UL 325 + ASTM F2200 AUDIT
$289 flat per gate
Written report, photos, remediation list. Credited 100% against any retrofit signed within 30 days.
GATE STUCK / WON'T MOVE (CALLOUT)
$285 + parts
Most repairs first-visit, parts on truck.
FULL UL 325-2018 RETROFIT
$1,200–$2,800 per gate
Photo eye + edge sensor + monitored wiring + signage.
NEW COMMERCIAL GATE OPERATOR INSTALL
$3,800–$7,400 installed
LiftMaster CSL / FAAC / HySecurity · ASTM F2200 compliant gate panel.
ANNUAL MAINTENANCE CONTRACT
from $389/gate/year
Lubrication, limit re-cal, sensor test, written compliance summary.
EMERGENCY RESPONSE
60–90 min business hrs
After-hours available · perimeter gate failures always priority.
All work documented for council, insurer, or AHJ on request. 1-year labour warranty. WCB + $5M liability insured. We retrofit older installations to current UL 325-2018 standard.
Sliding gates live under different safety law than garage doors
Two regulatory frameworks govern automated sliding gates in BC:
UL 325 — Underwriters Laboratories' standard for safety of "Door, Drapery, Gate, Louver, and Window Operators and Systems." Governs the operator (the motor that drives the gate). The 7th Edition (UL 325-2018, effective August 1, 2018) is the current version. It requires that every gate operator be classified (Class I residential, Class II commercial general-access, Class III industrial limited-access, Class IV restricted-access guarded facility), and that every potential entrapment zone be protected by two independent monitored devices per direction of travel — one inherent (built into the operator) and one external (photo eye or edge sensor).
ASTM F2200 — American Society for Testing and Materials standard for the gate structure itself. Governs how the gate is built and installed. Requires that openings in slide-gate panels (and the adjacent fence the gate covers when open) not allow a 2¼" sphere to pass through, from the bottom of the gate to 48" above ground. Requires guarding of exposed rollers, pinch points, and fall-over protection:
- Won't crush a person against a fence or wall during gate travel
- Won't catch a child or pet through an opening in the gate or adjacent fence
- Won't fall over if a roller fails
- Won't allow reach-through entrapment hazards
Most pre-2018 gates in Richmond are out of compliance with at least one of these requirements. The most common gap is single-device entrapment protection — an inherent sensor in the operator with no external photo eyes or edge sensors. After August 1, 2018, LiftMaster, FAAC, HySecurity, and DoorKing operators won't even run without dual monitored devices — but plenty of older installations are still operating on grandfathered single-device setups.
The legal exposure for the facility owner is real. A gate strike injury is one of the highest-payout incident categories in commercial insurance.
Cantilever, V-track, vertical-pivot.
Different gates, different physics.
The gate type determines the operator, the hardware, and the entrapment-protection layout. We document the type on every audit.
Class I, II, III, or IV. The class determines what protection you need.
UL 325 classifies gate operators by intended use. The class determines the entrapment-protection requirements, allowable operator force, and acceptable installation conditions. We document the class on every audit.
Residential
Vehicular gate operators for one- to four-family residences — driveway gates at houses, duplexes, fourplexes. Lowest force requirements. Simple residential driveways fall here.
Commercial / General Access
Vehicular gate operators for buildings accessible by the general public — multi-family housing of five+ units, hotels, retail, garages with public access, most Richmond strata parkades and apartment buildings. Highest scrutiny because untrained public uses the gate.
Industrial / Limited Access
Vehicular gate operators for industrial sites where users are trained employees, not the general public. Warehouses, distribution centres, fleet yards. Most Richmond industrial corridor gates (Bridgeport, Mitchell Island, East Cambie) fall here.
Restricted Access
Vehicular gate operators for guarded restricted-access sites — airport security, secure government, required industrial. Always paired with on-site security supervision.
Why class matters in practice: The class is stamped on the operator nameplate. If it's missing, the operator is non-compliant. The class determines acceptable entrapment protection, sensor placement, and signage. It also determines which entrapment-protection device types can be used — some Type C devices are only allowed on swing gates and barrier arms, not slide gates. We document the class on every audit.
Two independent monitored devices.
Per direction of travel.
The single biggest UL 325 change in the 2018 revision: every gate operator must support, and every commercial gate installation must have, two independent monitored entrapment protection devices in each direction of travel — open and close.
Independent — two different sensing mechanisms, not two of the same kind. Monitored — the operator electronically watches the device for failure; if a device falls or is disconnected, the operator stops working. Per direction — open direction needs two, close direction needs two.
Inherent entrapment sensor
Built into the operator itself. Detects current spike when the gate hits an obstruction. Counts as one device.
Photoelectric eye / photo beam
Infrared beam across the gate path. Stopping or reversing gate travel. Counts as one device.
Pressure sensor
Pressure-sensitive rubber strip along the waiting or trailing edge of the gate. Touching it stops or reverses gate travel.
A 2014 gate operator with a single inherent sensor and one photo eye in only one direction isn't compliant to 2018 standards. It's still legal to operate (the law isn't retroactive), but if it fails to reverse and injures someone, the standard the insurer and the court will measure it against is the current one. We retrofit installations to current spec.
Every operator brand installed in Richmond
We service and supply parts for every major sliding gate operator brand. All operators we install are UL 325-2018 two-monitored-device compliant. We retrofit older installations to current standard.
LiftMaster Commercial
SL3000, CSL24UL series. The North American volume leader. Most common operator in Richmond.
FAAC
Italian engineered, common in older Richmond installations. Hydraulic and electromechanical operators.
HySecurity
Shield-man LC, StrongArm. The high-security industry choice, used in Class III applications.
DoorKing
DKG 1500 and 6500 series, common at strata parkade entries.
Nice
Robus, Run, Apollo series. Common on European-influenced strata.
DEA System
Italian-made operators.
Linear
Standard residential and light commercial.
Came
Older commercial installations across Lower Mainland.
Parts we also carry:
Five reasons we get called
Gate Drags or Won't Move
V-wheels worn out, track full of debris, gate frame sagging. Internal rollers seized on a cantilever. Most common Richmond failure mode — consider humidity, freeze-thaw, and salt air from gate hardware hardening.
Photo Eye Drift / Edge Sensor Failure
Gate refuses to close, lights blink, or it reverses into a trailer. Sensors out of alignment, lens dirty, wiring broken at the gate frame from years of cycling. Second most common service call.
Operator Logic Board Failure
Power surge, lightning strike (more common than expected near the Fraser River), or general age. Gate refuses to respond to remotes, fobs, or wall controls. Board replacements are field-serviceable on most LiftMaster, FAAC, and HySecurity models.
Trailer / Vehicle Strike Damage
A misguided turn into a Richmond industrial yard puts a corner of a delivery truck through the gate panel. We re-section, re-channel, and re-balance — or source a replacement panel when the damage is structural.
UL 325 Non-Compliance Discovery
Often found at strata AGM after a near-miss, or by a new facility manager during first-time due diligence. We audit, document, and bring the system into current UL 325-2018 spec on a single visit when parts are in stock.
Documented compliance, photographed, signed.
A full DoorChamp gate compliance audit covers:
- Operator class identification (I, II, III, IV) and nameplate verification
- Entrapment device count per direction of travel (open and close)
- Device type validation (inherent vs. external, verify valid device types per class)
- Monitored connection test — disconnect each device, verify operator shuts down
- ASTM F2200 gate structure check: 2¼" sphere test for gate openings and adjacent fence
- Roller cover and pinch-point guarding inspection
- Fall-over and anti-rise bracket inspection
- Physical stop check (both directions)
- Warning signage verification — both sides of gate, UL 325 compliant text
- Battery backup test (where installed)
- Manual disconnect function verification
- Written report with photographs of every non-compliant item
$289 flat for a single-gate audit anywhere in Richmond.
Remediation quotes are itemized, line-by-line. The audit fee is credited 100% against any retrofit signed within 30 days.
Sliding gate operators we service & install
LiftMaster · FAAC · HySecurity · DoorKing · Nice · DEA · Linear · Came.
All operators we install are UL 325-2018 compliant with two monitored entrapment protection devices per direction. The most compliant configuration continuos customer service on each.
NORTH AMERICAN STANDARDLIFTMASTER · CSL SERIES

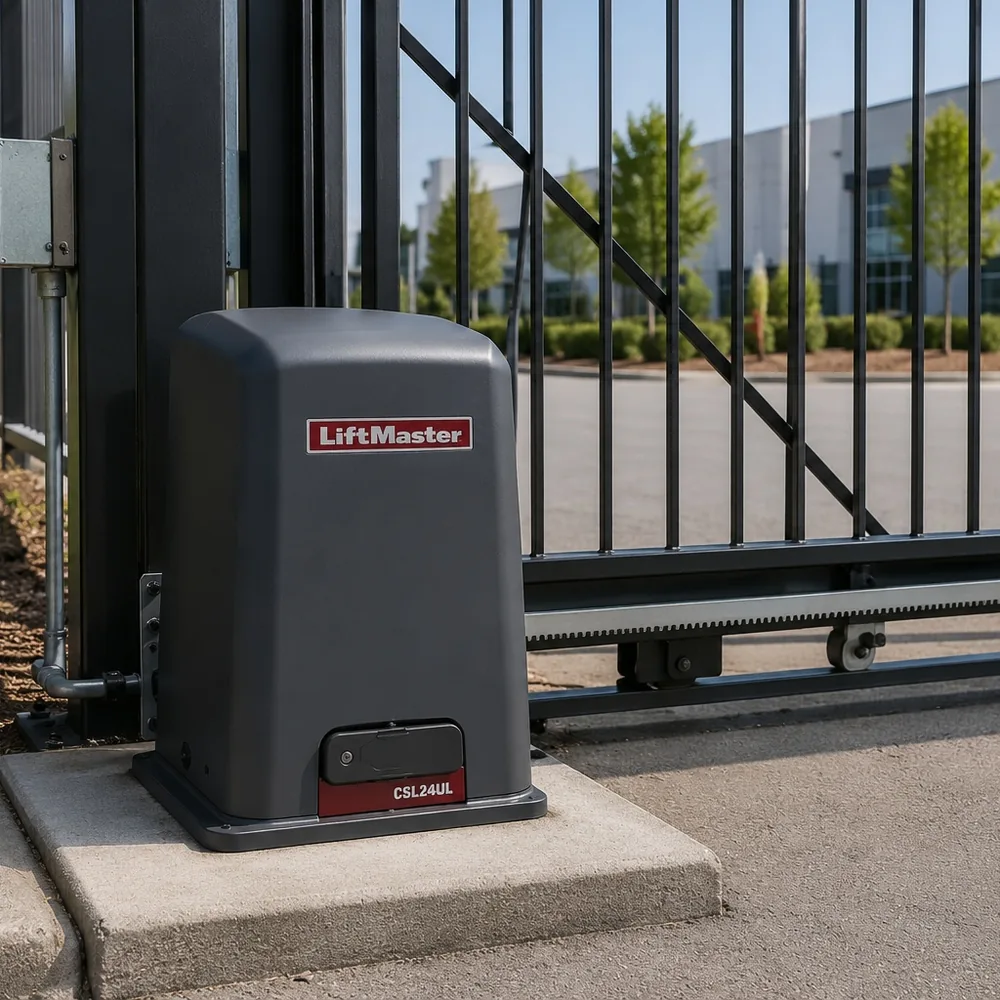

LiftMaster CSL24UL Commercial Slide
The dominant choice for Richmond strata parkades and Class II commercial gates. Quiet belt drive, built-in inherent sensor, solar and MyQ ready.
- Up to 800 lb gate
- DC motor, soft start/stop
- Built-in inherent (Type A) sensor
- Solar ready
- MyQ remote monitoring
- UL 325-2018 2-device compliant
HEAVY COMMERCIALLIFTMASTER · SL3000 SERIES

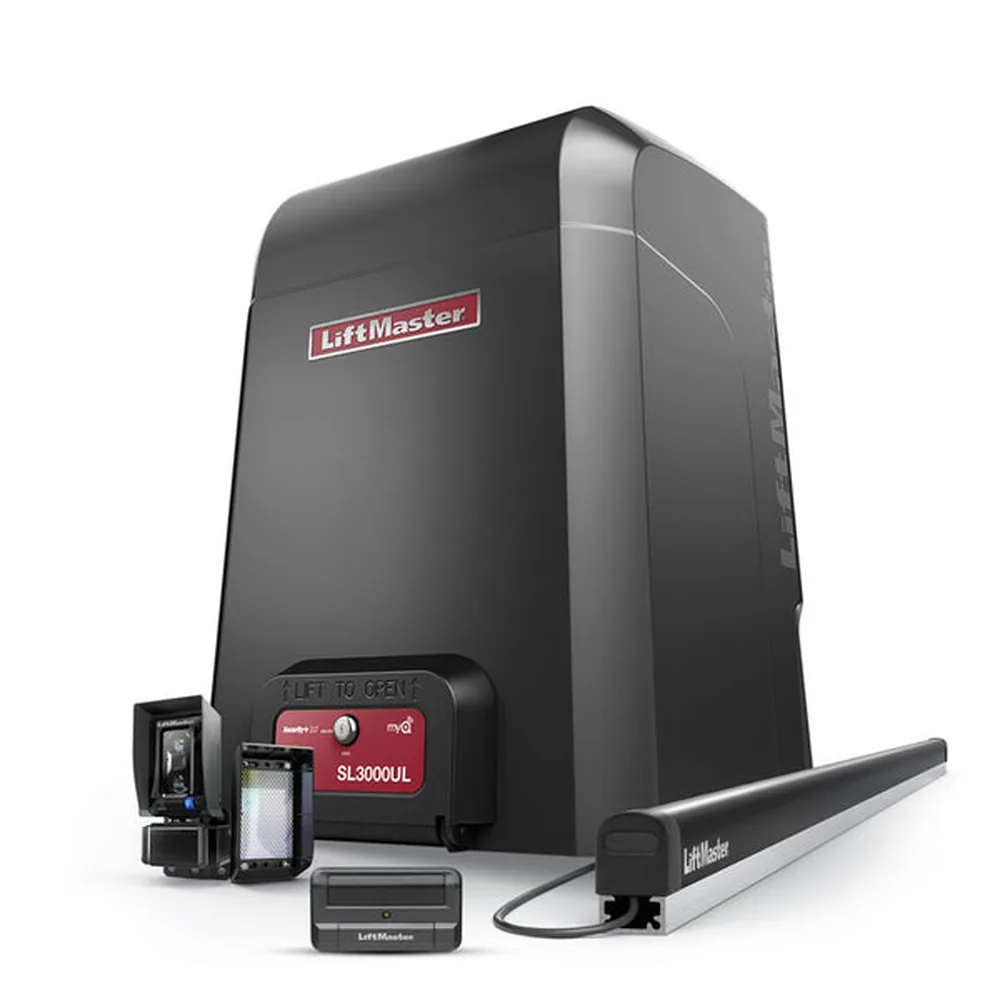

LiftMaster SL3000UL
Heavy-duty chain-drive operator for large-panel Richmond industrial gates up to 3,000 lb. UL 325-2018 3-device monitoring built in.
- Up to 1,000 / 3,000 lb gate
- Built-in monitored inherent sensor
- MyQ ready
- Battery backup option
- Full 3-device UL 325-2018 compliance
- Industrial duty cycle

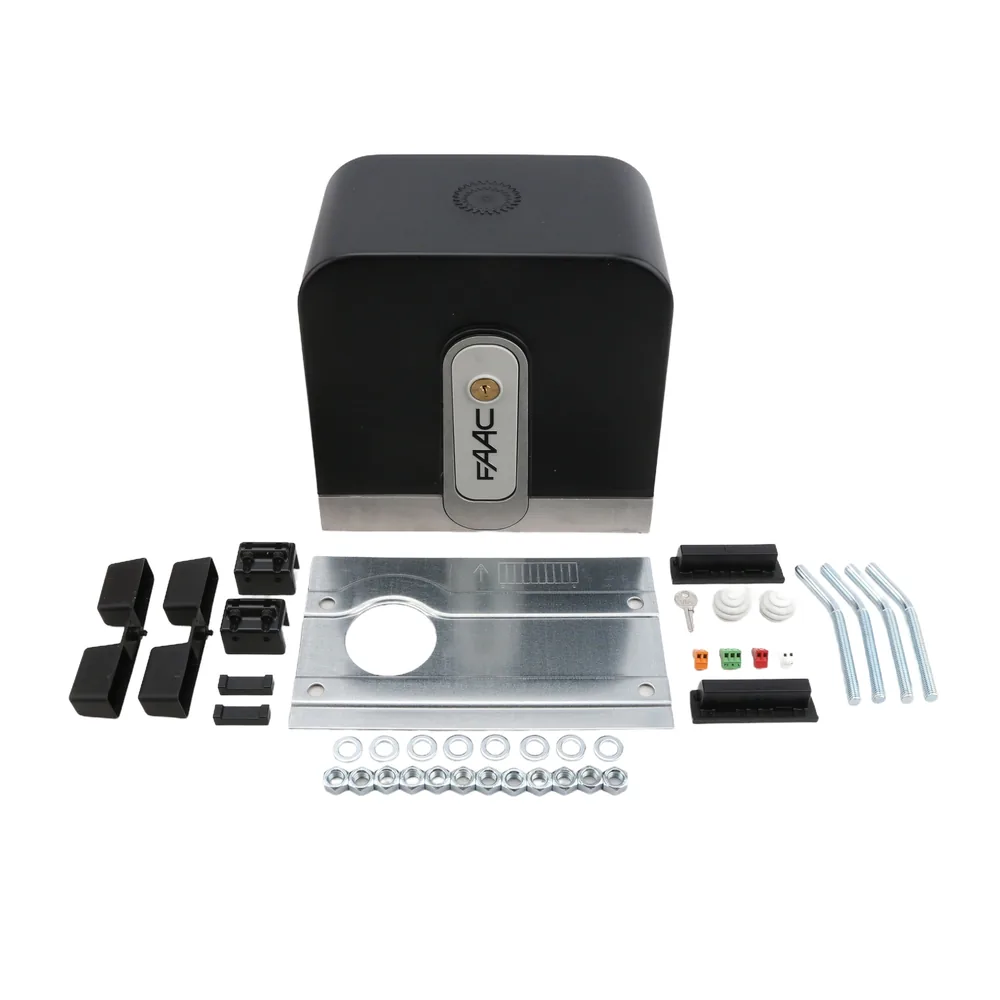

FAAC ENGINEEREDFAAC · C720 / C724 SERIES
FAAC C720 / C724
Italian-engineered electromechanical slide operator. Common on older Richmond installations. Hydraulic smoothness without hydraulic complexity.
- Medium-to-high drive capacity
- FAAC dedicated protection module
- Solar engineering option
- Battery backup on C724
- Parts stocked locally
- 2-year manufacturer warranty
HIGH SECURITY RATEDHYSECURITY · SLIDESMART DC SERIES

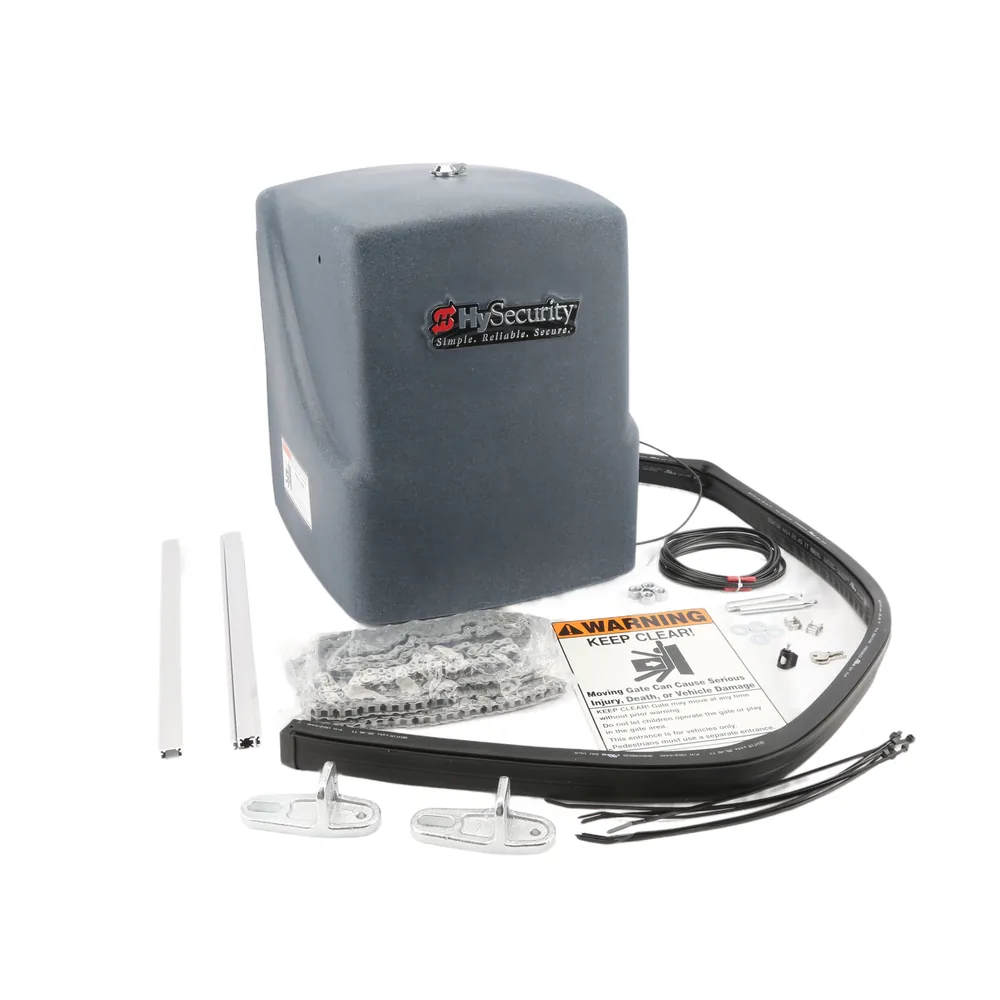

HySecurity SlideSmart DC15 / DC30
The premium choice for Class III Richmond gated facilities. Resists the elements, smart diagnostics, heavy-cycle duty for high-traffic access points.
- Up to 1,500 / 3,000 lb gate
- DC motor, adjustable speed
- Smart Gate technology
- Built-in edge sensor interface
- 400 cycles/day rated
- On-board diagnostics
BARRIER ARMHYSECURITY · STRONGARM SERIES

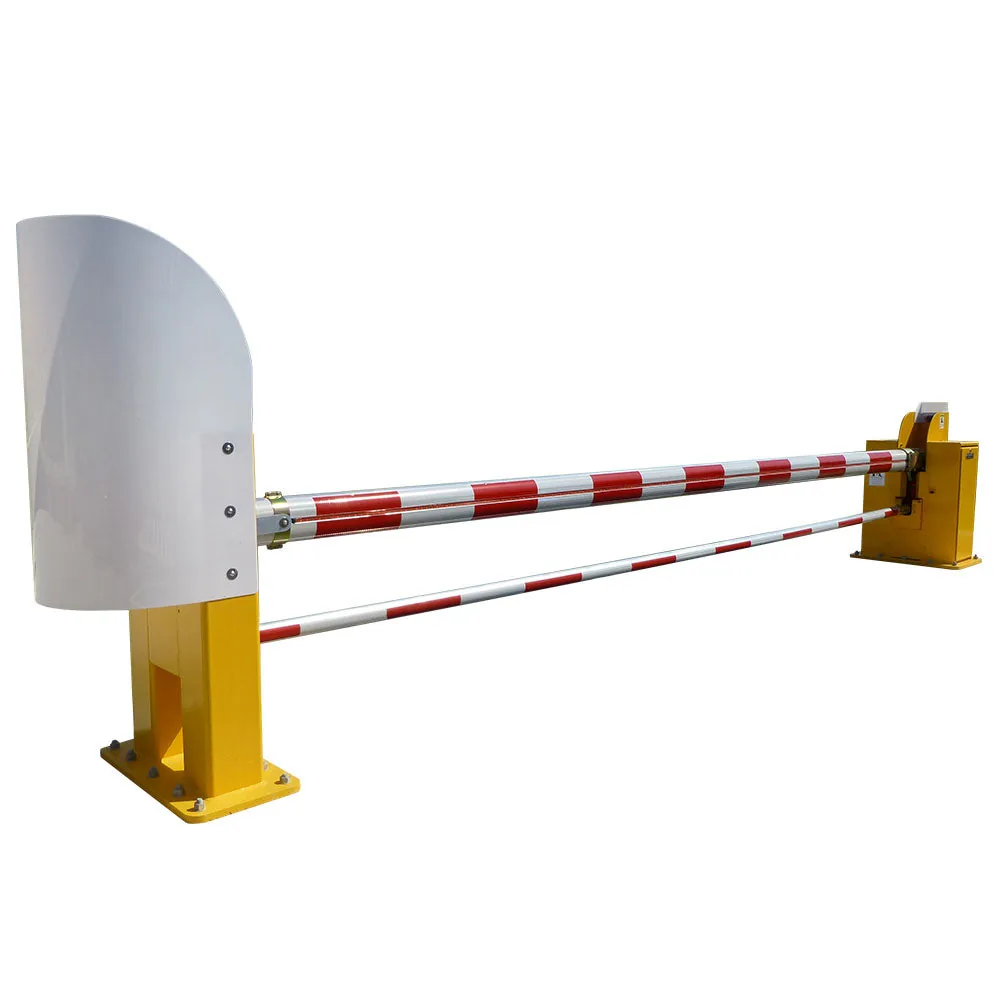

HySecurity StrongArm M30 / M50
Class III–IV hardened barrier arm for Richmond restricted-access facilities. ASTM F2200 certified. Built to resist forced entry and high-cycle abuse.
- M30: 14 ft / M50: 20 ft arm
- 500–1,000 lb impact rating
- Anti-tailgate sensor built in
- Factory security-shielded
- 3-year warranty
- Pairs with any access panel
DOORKING STANDARDDOORKING · 9000 SERIES

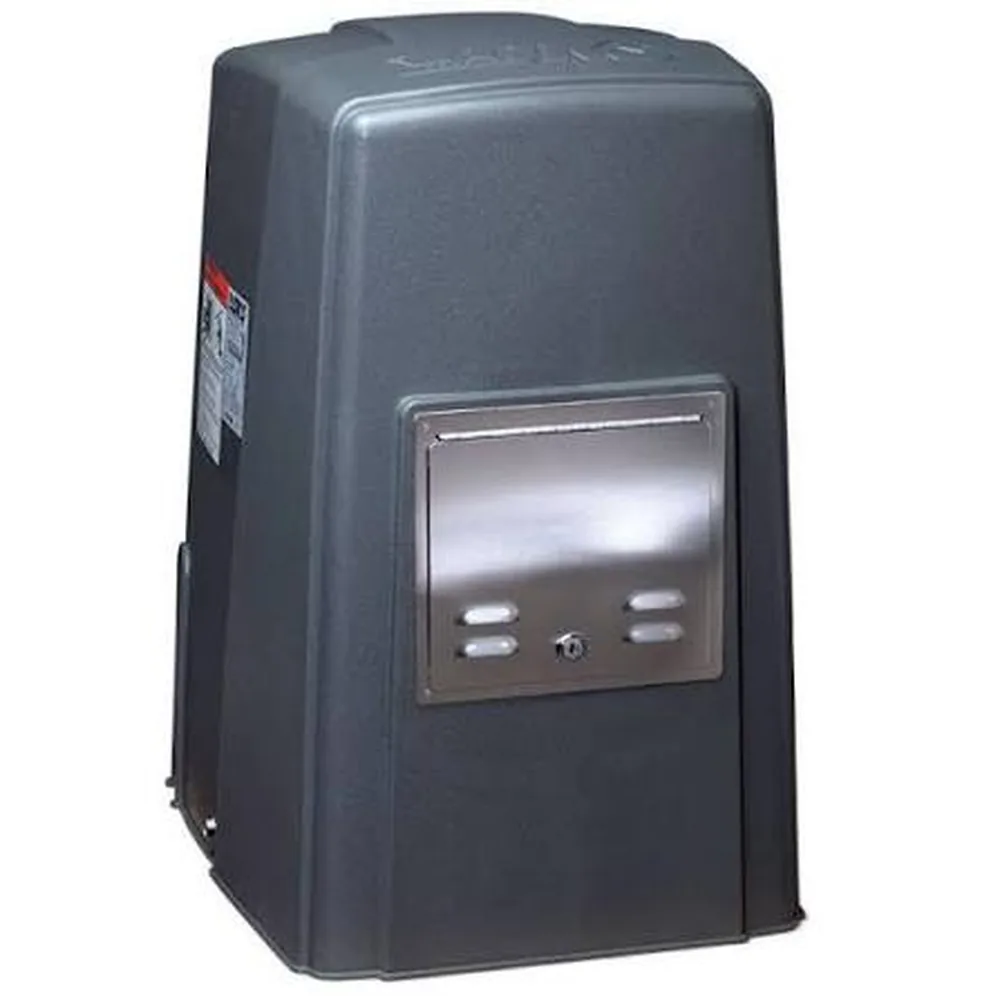

DoorKing 9000
Standard distributed-drive slide operator with integrated telephone entry option. Richmond's most common parkade operator platform for telephone access.
- ½ or ¾ HP AC motor
- 12 or 24V DC closure
- Telephone entry integration
- DoorKing panel compatible
- UL 325 assessed
- 2-year warranty
Entrapment protection & access control
Monitored photo eyes · Edge sensors · Loop detectors · Access control. UL 325-2018 compliant.
Every UL 325-2018 compliant commercial slide gate needs two monitored entrapment protection devices per direction. The most common compliant setup: inherent sensor (built into the operator) + photo eye + edge sensor. We install and service the devices below.

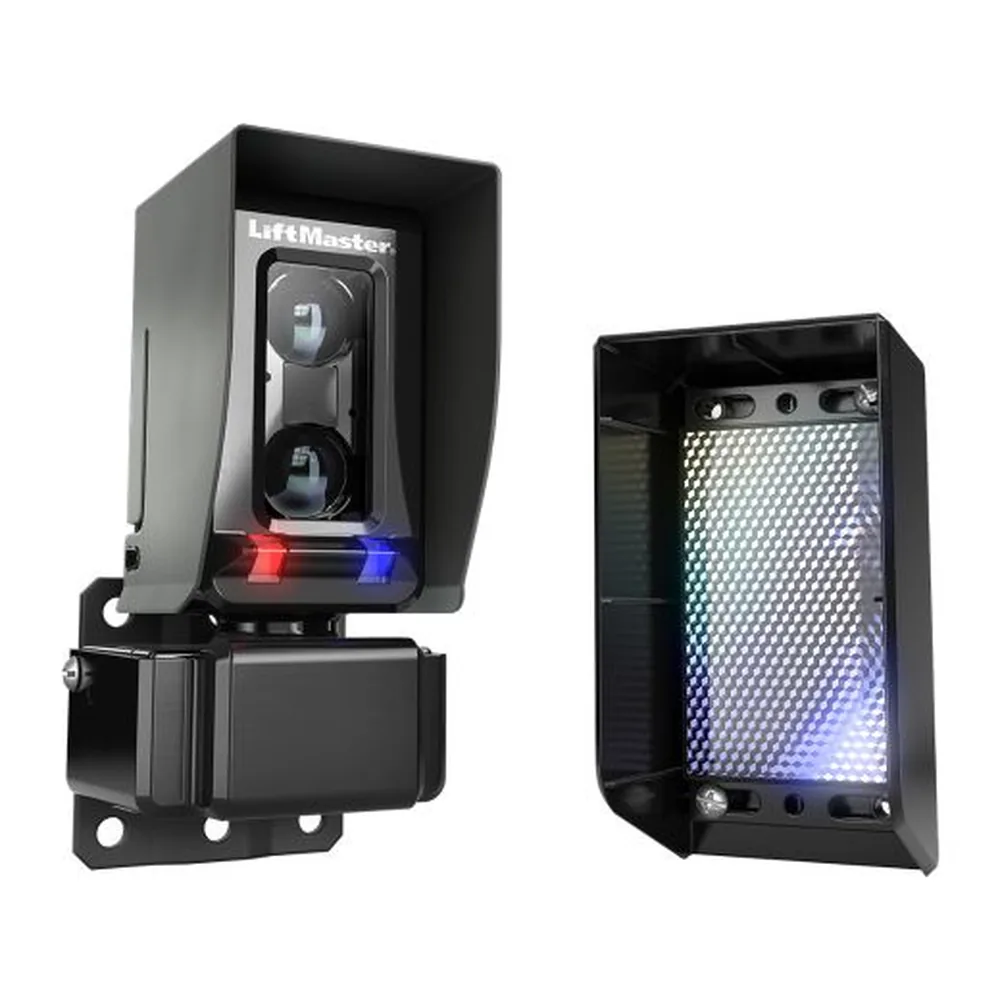

PHOTO EYE · TYPE IIILIFTMASTER · MONITORED PHOTO EYE
LiftMaster Monitored Photo Eye
Monitored infrared beam per direction of travel. Satisfies one of the two required external entrapment devices for UL 325-2018 Class II–IV compliance.
- Monitored (active monitoring)
- Range to 60 ft
- Tamper-resistant lens design
- Pairs with any major operator
- Weather-rated housing
- UL 325 Type III device
MONITORED EDGE · TYPE B2MILLER EDGE · FMX M30 / M50
Miller Edge / FMX Monitored Edge

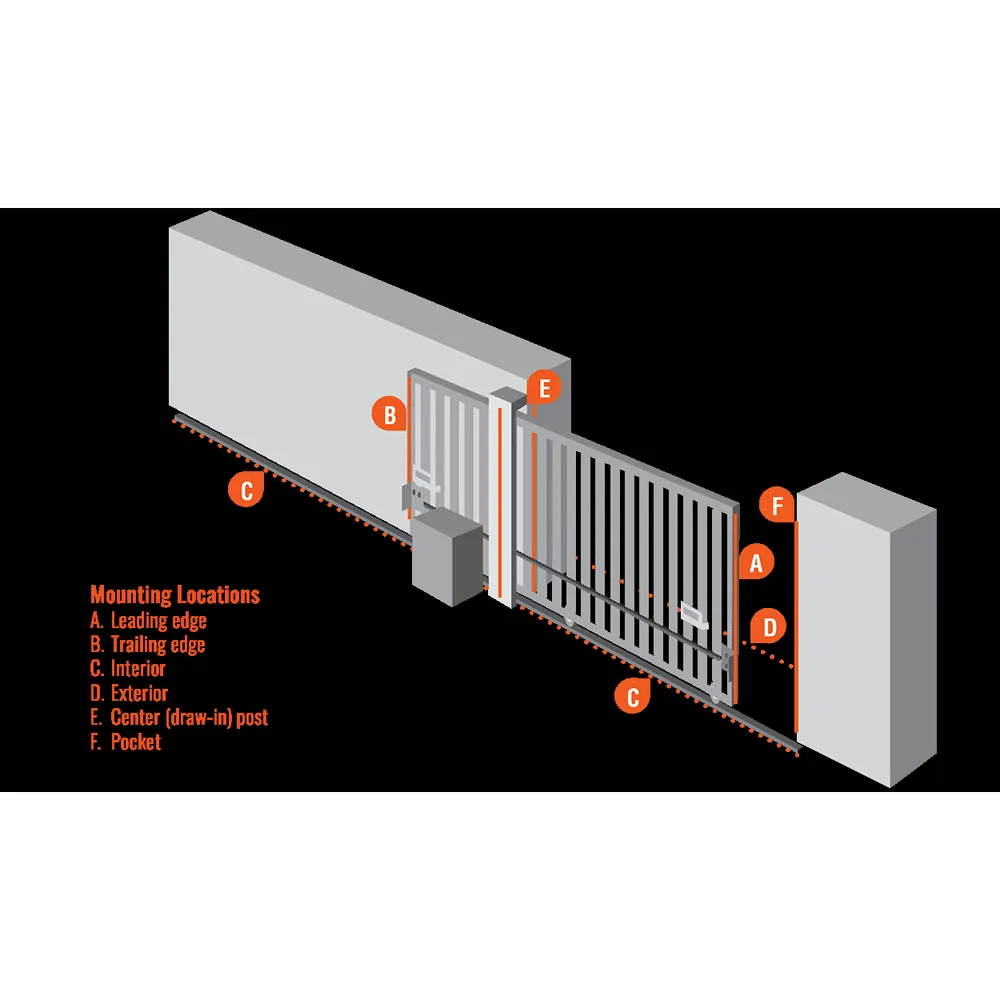

Pressure-sensitive rubber strip along the leading or trailing edge of the gate. Stops gate travel on contact. Required on all Class II–IV gates.
- Pressure-sensitive (Type B2)
- Soft or rigid mounting
- Adjustable sensitivity
- Wireless versions available
- Resistor-terminated for monitoring
- Required for full UL 325-2018
LOOP DETECTORFMX D-TEK / DIABLO DSP-7 SERIES

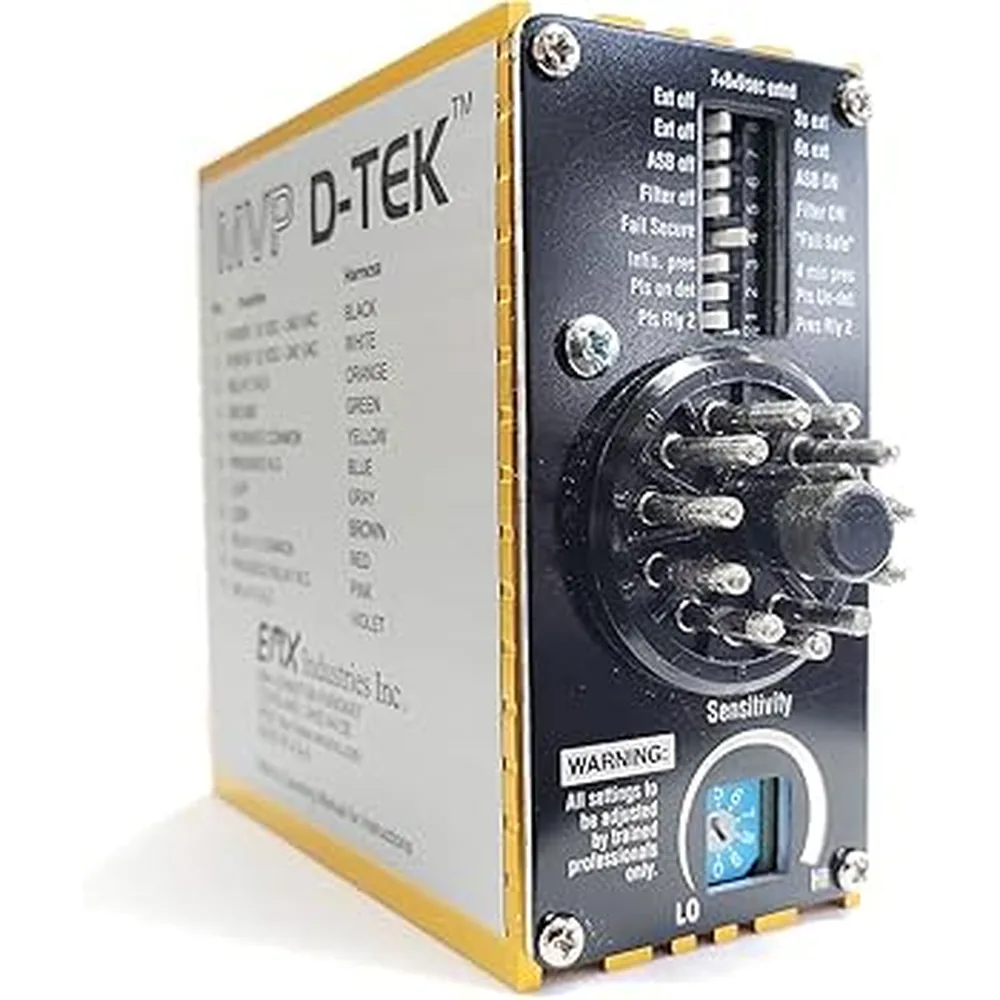

FMX D-TEK / Diablo DSP-7
In-ground vehicle detection loop controller. Prevents the gate from closing on a stopped vehicle. Required for exit lanes and busy Richmond industrial yards.
- Stay-open vehicle detection
- 100 Hz frequency range
- End-of-line loop operation
- Sag detection operation
- Adjustable loop sensitivity
- Required for exit operation
ACCESS CONTROLMYQ SMART · DKS TELEPHONE BOARD

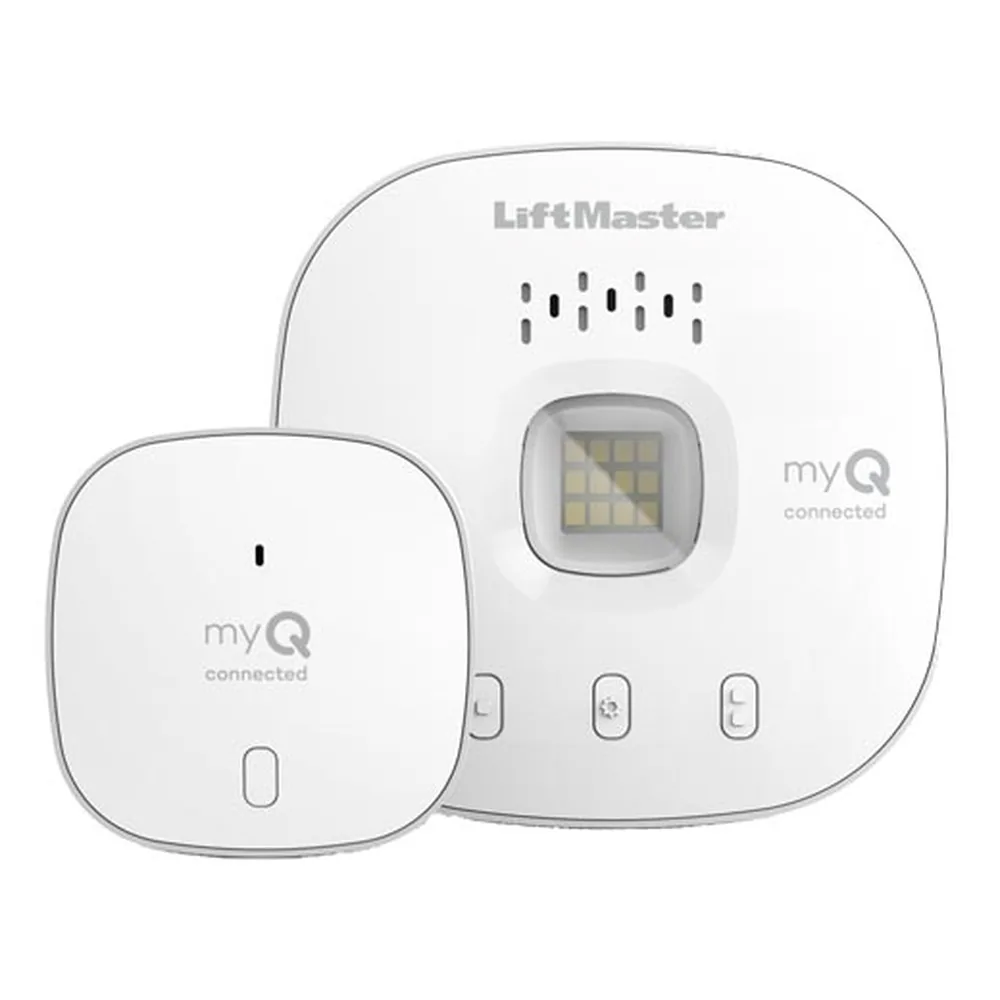

MyQ Smart · DKS Telephone Board
Cloud-connected access panel with phone directory and app integration. Replaces legacy keypads across Richmond strata parkades and commercial entries.
- Cellular or IP access
- Manage key fobs remotely
- Activity log / audit trail
- Multi-unit and strata ready
- Integrated UL 325 interlock
- Replaces DK 1802, 1812 series
Frequently asked questions
Where We Work
Sliding Gate Repair & Installation in Richmond & Metro Vancouver
DoorChamp is based in Richmond, BC and provides same-day sliding gate repair & installation to homeowners and businesses across Metro Vancouver — including Richmond, Vancouver, Burnaby, Delta, Surrey, New Westminster, Coquitlam, Ladner, Tsawwassen, North Vancouver.
Richmond
Home base
Vancouver
Burnaby
Delta
Surrey
New Westminster
Coquitlam
Ladner
Tsawwassen
North Vancouver
Not sure if we cover your neighbourhood? Call (778) 732-0588 — we'll let you know right away. View the full service area list.
Audit your gate. Know exactly where you stand.
For $289 flat, we'll audit your Richmond sliding gate against UL 325 and ASTM F2200, document every non-compliant item with photographs, and hand you a written report. No sales pitch — the audit fee is the audit fee.
